UV-F-320

Wavelength (nm)

320±1

Output power (mW)

>1, 2, 3, …, 5

Transverse mode

Near TEM00

Operating mode

CW

Power stability (rms, over 4 hours)

<10%

Warm-up time (minutes)

<10

M2 factor

<2. 0

Beam divergence, full angle (mrad)

<2.0

Beam diameter at the aperture (mm)

~3. 0

Beam height from base plate (mm)

45

Polarization ratio

>50:1 (Horizontal)

Operating temperature (℃)

10~35

Spectral purity

>99%

Power supply (90-264VAC)

PSU-H-FDA

Expected lifetime (hours)

5000

Datasheet

• Output Power up to 5 mW
• TEC cooling system
• Lightweight, compact design
• Superior beam quality
• Best reliability and lifetime

• DNA sequencing
• Micro-electronics
• Cell sorting
• Optical instrument
• Spectrum analysis
• Physics experiment
• Laser rapid modeling

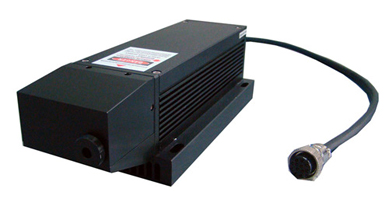

• UV-F-320 laser head
• PSU-H-FDA power supply

• Fiber coupling lasers
• UV laser
